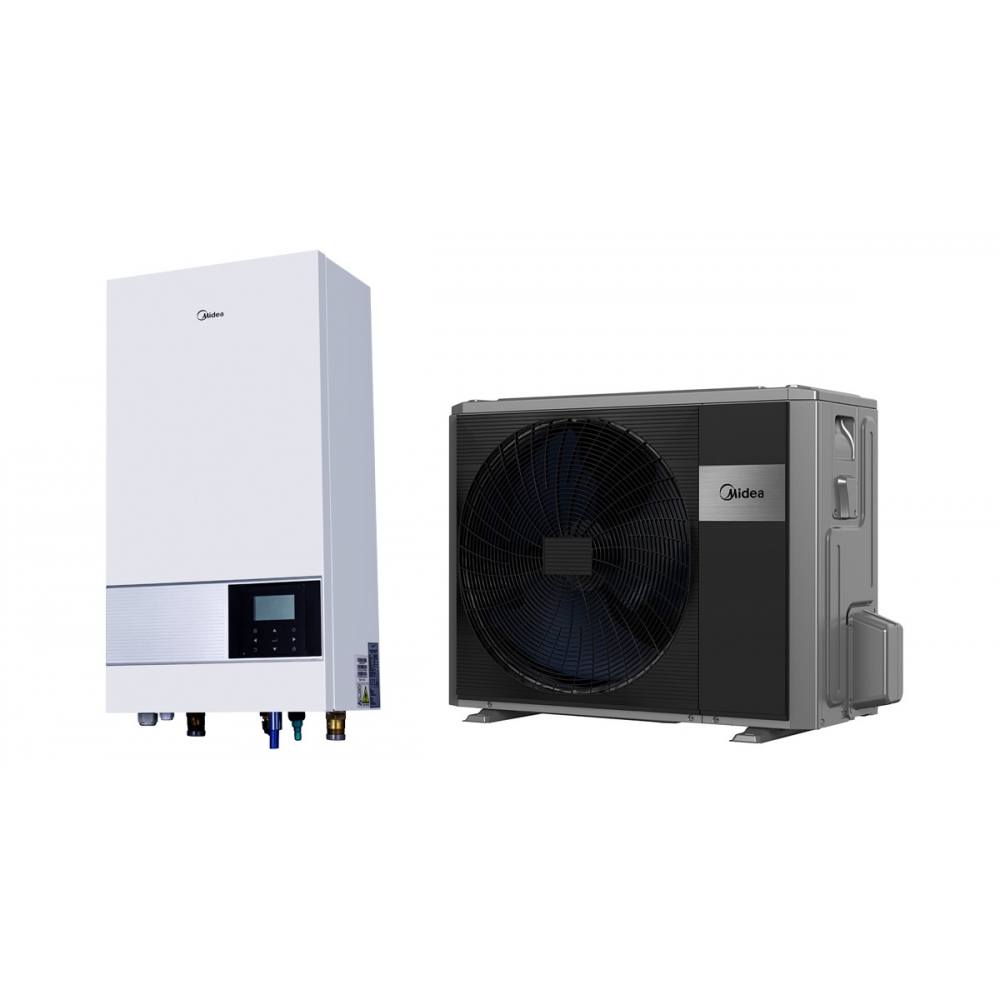

Midea M-Thermal Arctic Split MHA-V6W/D2N8-B2 + HB-A60/CD30GN8-B2 Heat Pump

Midea Air-water M-Thermal Arctic Split MHA-V6W/D2N8-B2 + HB-A60/CD30GN8-B2 Heat Pump

  • Series: M-Thermal Arctic Split;
  • Type: Split;
  • Maximum water temperature: 60 C°;
  • Cooling SEER: 5.23;
  • Heating: SCOP: 6.57;
  • Warranty: 36 months

VAT incl. price:

3 999,00 €

Find the nearest dealer

Functions and extras:

    {hook h="CETemplate" id="28"}

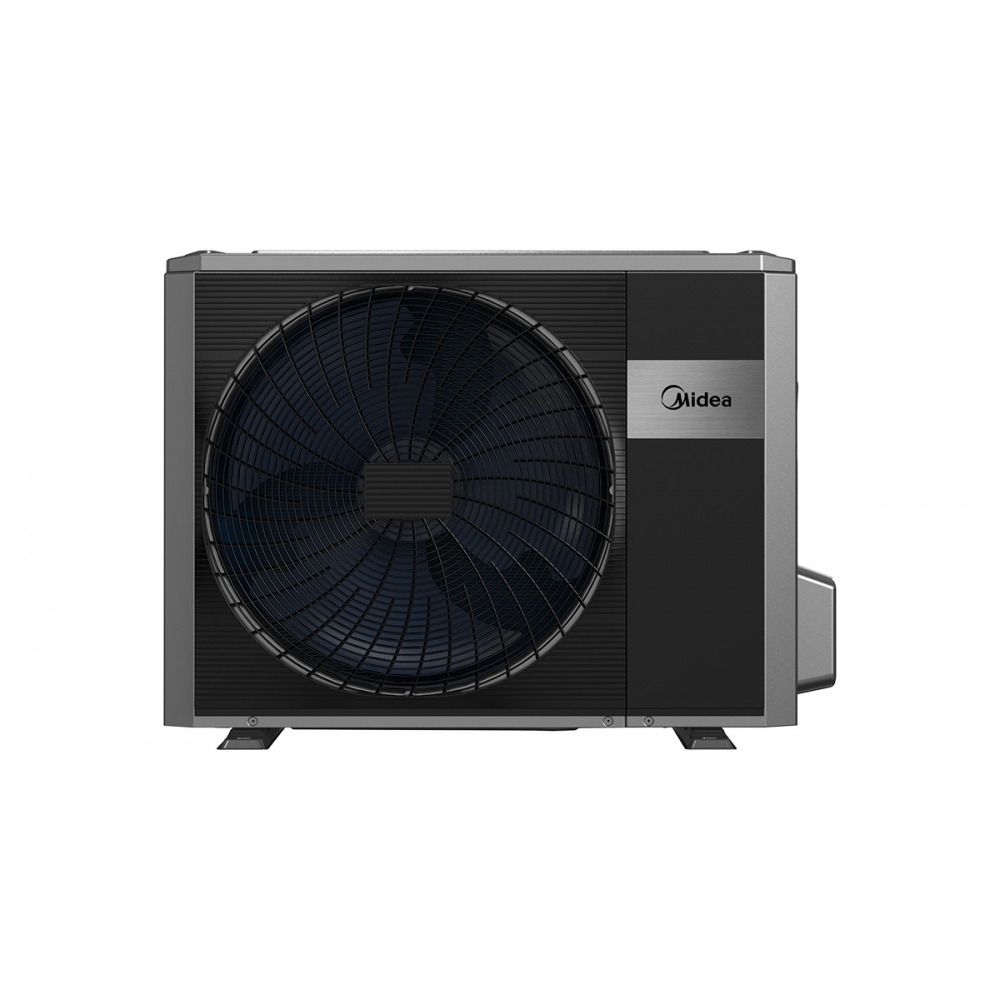

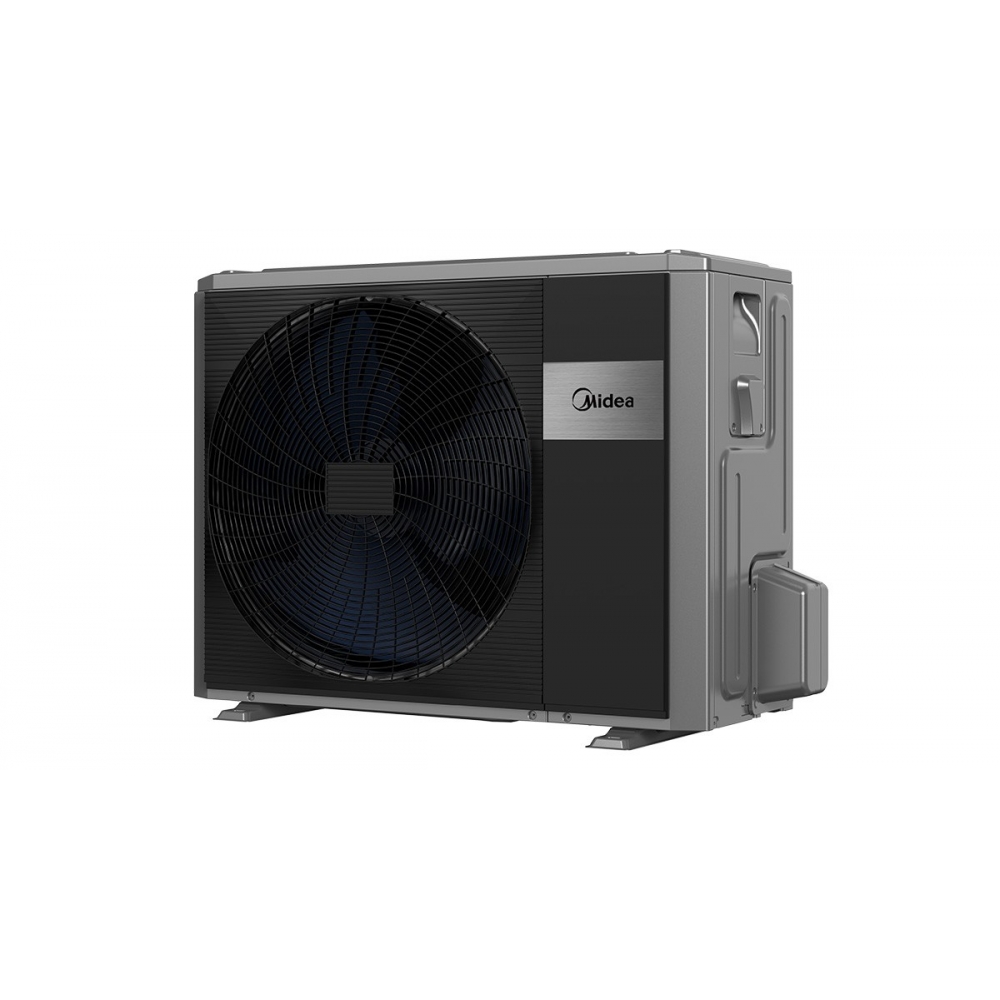

    Model nameMHA-V6W/D2N8-B2
    Compatible hydronic boxHB-A60/CD30GN8-B2
    Power supplyV/Ph/Hz220-240/1/50
    Heating(A7W35)CapacitykW6.20
    Rated inputkW1.24
    COP5.00
    Heating(A7W45)CapacitykW6.35
    Rated inputkW1.69
    COP3.75
    Heating(A7W55)CapacitykW6.00
    Rated inputkW2.00
    COP3.00
    Heating(A-7W35)CapacitykW6.10
    Rated inputkW2.00
    COP3.05
    Heating(A-7W55)CapacitykW5.15
    Rated inputkW2.58
    COP2.00
    Cooling(A35W18)CapacitykW6.55
    Rated inputkW1.34
    EER4.90
    Cooling(A35W7)CapacitykW7.00
    Rated inputkW2.33
    EER3.00
    Seasonal space heating energy efficiency class1Water outlet at 35⁰Cηs195.0%
    ClassA+++
    Water outlet at 55⁰Cηs137.9%
    ClassA++
    SCOP1Warmer climate35⁰C6.57
    55⁰C4.21
    Average climate35⁰CA+++
    4.88
    55⁰CA++
    3.45
    Colder climate35⁰C4.21
    55⁰C2.85
    SEERLWT at 7⁰C5.23
    LWT at 18⁰C8.25
    Rated water flowm3/h1.07
    CompressorTypeTwin rotary DC inverter
    Outdoor fanMotor typeBrushless DC motor
    Number of fans1
    Air side heat exchangerTypeFinned tube
    Refrigerant(R32)Factory chargekg1.50
    Throttle typeElectronic expansion valve
    Piping connectionsTypeFlare
    Liquid Dia.(OD)mmΦ6.35
    Gas Dia.(OD)mmΦ15.9
    Min. pipe lengthm2
    Max. pipe lengthm30
    Installation height differenceOutdoor unit abovem20
    Outdoor unit belowm20
    Sound power level2dB58
    Sound pressure level3dB45
    ODU Net dimensions (W×H×D)mm1008×712×426
    ODU Packed dimensions (W×H×D)mm1065×810×485
    ODU Net/Gross weightkg58/63.5
    Operating temperature rangeCooling⁰C-5 to 43
    Heating⁰C-25 to 35
    DHW⁰C-25 to 43

    Note:

    1. Relevant EU standards and legislation: EN14511; EN14825; EN50564; EN12102; (EU) No 811:2013; (EU) No 813:2013; OJ 2014/C 207/02:2014.
    2. Test standard: EN12102-1
    3. Sound pressure level is the maximum value tested under the two conditions of Heating: A7W35 and Cooling: A35W18.
    Model nameHB-A60/CD30GN8-B2
    Compatible Outdoor unit modelMHA-V4(6)W/D2 N8-B2
    FunctionHeating and cooling
    Setting water temperature rangeCooling°C5～25
    Heating°C25～65
    DHW3°C20～60
    Power supplyV/Ph/Hz220-240/1/50
    Sound power level1dB38
    Sound pressure level(1m)2dB28
    Dimension (W×H×D)mm420×790×270
    Packing (W×H×D)mm525×1050×360
    Net/gross weightkg37/43
    Water circuitPiping connectionsinchR1"
    Safety valve set pressureMPa0.3
    Drainage pipe connectionmmФ25
    Expansion tankVolumeL8.0
    Max. water pressureMPa0.3
    Pre-pressureMPa0.1
    Water sideTypePlate type
    Water pump headm9
    Water flow rangem3/h0.4~1.25
    Internal water volumeL2.2-5.0
    Refrigerant circuitLiquid Dia. (OD)mmΦ6.35
    Gas Dia. (OD)mmΦ15.9

    Note:

    1. Test standard: EN12102-1
    2. Sound pressure level is the maximum value tested under the two conditions of Heating: A7W35 and Cooling: A35W18 for different combination between outdoor unit and hydronic box.
    3. Maximum domestic hot water temperature 60°C is only available with TBH support.
    SeriesM-Thermal Arctic Split
    TypeInverter
    Cooling Capacity7.00
    Heating Capacity6.20
    RefrigerantR32
    Noise Level28 / 45
    Built-in water tank (L)No
    Warranty3 years
    Indoor UnitHB-A60/CD30GN8-B2
    Outdoor UnitMHA-V6W/D2N8-B2
