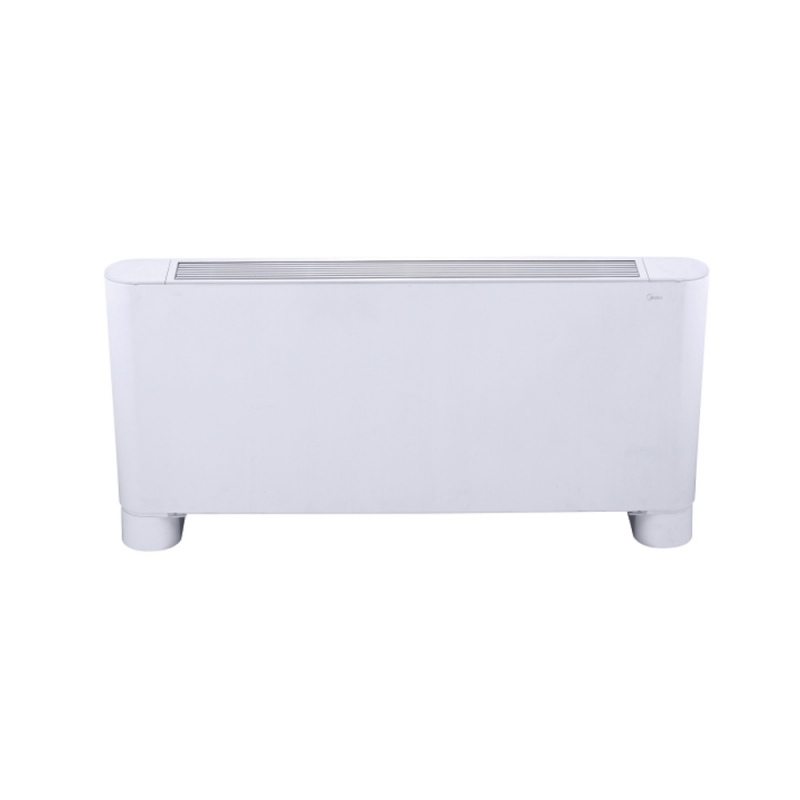

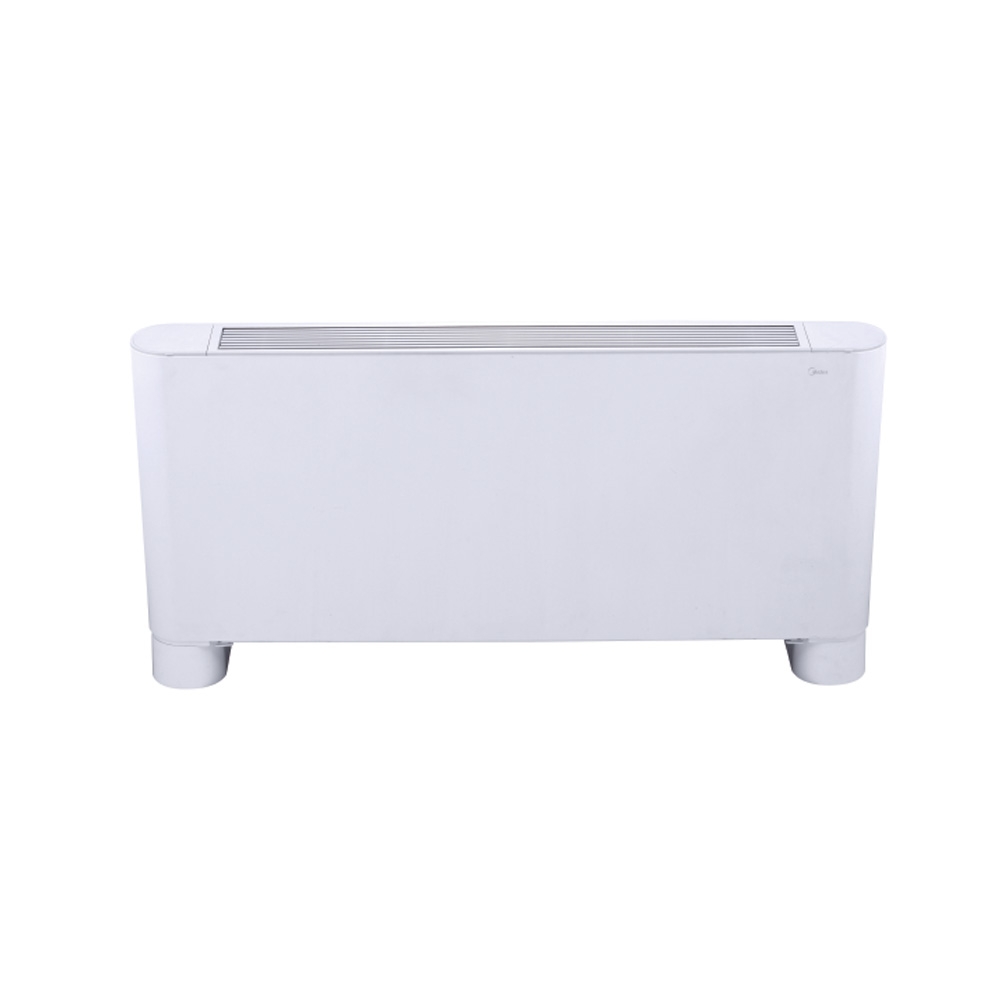

Ceiling-floor type fan coil Midea MKH2-V350-R3
- Type: Fan Coil;
- Technology: Invertor Fan Coil;
- Warranty: 36 months.
Functions and extras:
Ceiling-floor type fan coil Midea MKH2-V350-R3
Features:
- 3 or 4 rows coil are optional for whole series.
- 2-Pipe and 4-Pipe are optional for whole series.
- Ultra-thin with 200 mm thickness.
- Hysteresis temperature can be set in heating and cooling mode by PCB switch, field adjustable.
- With/without forced fan on can be set by PCB switch, field adjustable.
- The XYE port(Centralized) and PQE port (Modbus) are can be customized.
- 0-10 V fan speed control port is optional.
- Floor standing/Horizontal/ Concealed type installation available (For floor standing : The footing is optional).
- Auto mode and 7 fan speed (by 75A wired controller).
Technical Specifications for Ceiling-floor type fan coil Midea MKH2-V350-R3
| Model | MKH2-V350-R3 | ||
|---|---|---|---|
| Power supply | V/Ph/Hz | 220-240 / 1 / 50 | |
| Air flow (H/M/L) | m3/h | 595 / 470 / 340 | |
| CFM | 350 / 276 / 200 | ||
| Cooling1 | Capacity (H/M/L) | kW | 3.50 / 2.89 / 2.22 |
| Water flow rate (H/M/L) | m3/h | 0.60 / 0.50 / 0.38 | |
| Water pressure drop | kPa | 34.1 / 24.63 / 15.39 | |
| Heating2 | Capacity (H/M/L) | kW | 3.80 / 3.10 / 2.35 |
| Water flow rate (H/M/L) | m3/h | 0.65 / 0.53 / 0.40 | |
| Water pressure drop | kPa | 35.1 / 24.41 / 14.82 | |
| Power input (H/M/L) | W | 26 / 17 / 10 | |
| Sound power level (H/M/L) | dB(A) | 52 / 44 / 36 | |
| Fan motor | Type | Low noise DC fan motor | |
| Quantity | 1 | ||
| Fan | Type | Centrifugal, forward-curved Blades | |
| Quantity | 2 | ||
| Coil | Row | 3 | |
| Max. working pressure | MPa | 1.6 | |
| Diameter | mm | φ 7.94 | |
| Body | Net dimensions (W х H х D) | mm | 1240 x 495 x 200 |
| Packing size (W х H х D) | mm | 1345 x 595 x 300 | |
| Net weight | kg | 25.5 | |
| Gross weight | kg | 32.5 | |
| Pipe connections | Water inlet/outlet pipe | inch | G3/4 |
| Drain pipe | mm | ODφ18.5 | |
Notes:
H: High fan speed; M: Medium fan speed; L: Low fan speed.
- Cooling conditions: Entering water 7°C, leaving water 12°c, Entering air temperature 27°C DB/l 9°C WB.
- Heating conditions: Entering water 45°C, leaving water 40°C, Entering air temperature 20°C DB/15°C WB.
| Cooling Capacity | 3.50 / 2.89 / 2.22 kW |
| Heating Capacity | 3.80 / 3.10 / 2.35 kW |
| Warranty | 3 years |
| Indoor Unit | MKH2-V350-R3 |
