Functions and extras:

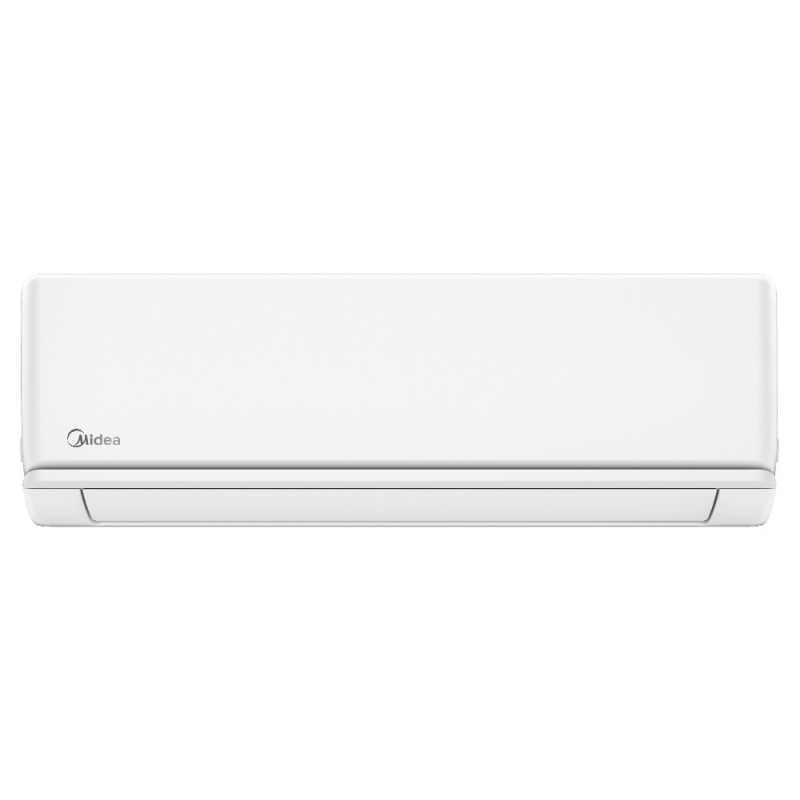

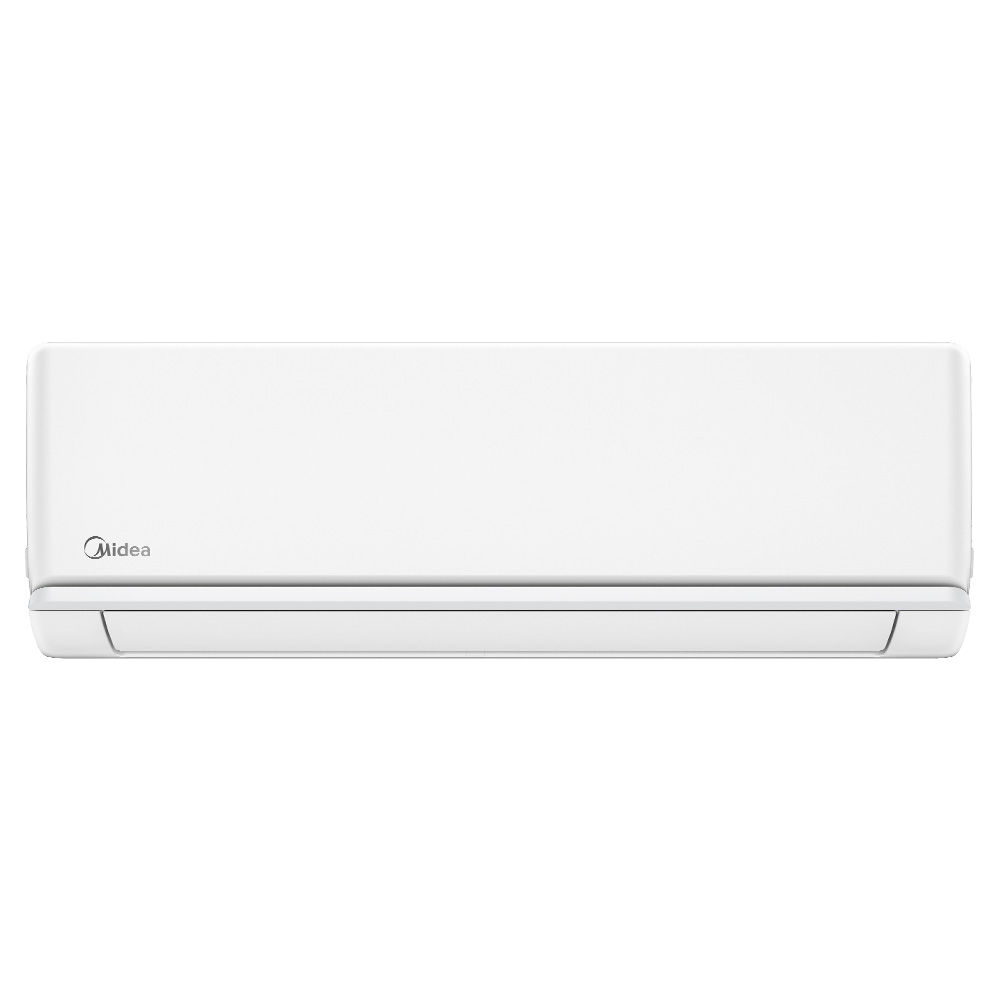

The new Midea MA3-24HRFN8-QRD0GW Prime 2 inverter air conditioner has an A++/A+ (cooling/heating) energy efficiency class.
Compared to ordinary high-density dust filters, the high-density filter captures the finest dust particles in the air and provides up to 80% cleaner and healthier air.
The cold-catalyst filter eliminates formaldehyde and other volatile organic compounds (VOCs), as well as harmful gases and odors.
Unlike normal self-cleaning and i-Clean mode, in "56°C sterilization" mode the heat exchanger is frozen in cooling mode, then heated to 56°C for 30 to 60 minutes, thus destroying up to 99.9% of harmful organisms on the heat exchanger of the indoor unit. The "56°C sterilization" function can last up to 95 minutes.
The low temperature kit allows air conditioning systems to operate in cooling mode at an outdoor temperature of -15°C.
The Golden Fin coating is more resistant to oxidation and corrosion than ordinary Blue Fin coating. Golden Fin effectively prevents the growth and spread of bacteria and improves resistance to corrosive elements.
The indoor unit of the air conditioner detects an error code "EC", which will be displayed and will stop working automatically when a freon leak is detected. This will protect the air conditioning compressor from damage caused by high temperatures when the refrigerant leaks. This function is only available in cooling mode.
In 8°C heating mode, this constant temperature is maintained, thus protecting the home from excessive cooling in winter or freezing of pipes and houseplants. The regime is especially suitable in the long absence of the occupants of the home.
When Turbo mode is activated, the indoor unit fan starts running at maximum speed to ensure the desired temperature as quickly as possible. The mode lasts a maximum of 20 minutes, after which it automatically returns to the preset mode before activating Turbo mode.
Horizontal louvers are floated at an angle of 120 °, while with conventional air conditioners this happens only at 90 °. These more flexible louvers provide cooling that is wider and more even.
The remote control has a built-in temperature sensor that automatically regulates the operating temperature depending on the measured temperature in the area in which it is located.
This economy mode integrates a new innovative ECO energy saving technology. When the “ECO” button is activated, the air conditioner reduces energy consumption by 60% within 8 hours of continuous operation.
When night mode is activated during cooling, the air conditioner automatically raises the room temperature by 1 ° C for the first two hours, after which it remains fixed. When night mode is activated during heating, the air conditioner automatically lowers the room temperature by 1 ° C for the first two hours, after which it remains fixed.
The air conditioner automatically switches to power save mode when it is turned off (in Standby mode). This reduces power consumption from 5W to 1W, giving you up to 80% energy savings.
The drain pipe can be routed to the left and right side of the indoor unit of the air conditioner for easy and convenient installation.
In the event that the air conditioner stops working unexpectedly due to a power outage, it will restart automatically as soon as power is restored and will start operating in the mode set before the power was turned off.
Ability to set a 24-hour timer to turn the air conditioning system on and off within 24 hours.
The position of the horizontal valve of the air conditioning system is saved when switched off and is restored automatically when switched on again.
The indoor unit is compatible with both mono and multi inverter systems, allowing easy selection of suitable indoor and outdoor units. This is a convenient solution for warehouses and shopping centers.
At the touch of a button, the airflow direction is automatically adjusted to the maximum angle to prevent direct airflow.
Possibility to set the operating power of the compressor to 50%, 75% or 100%, which allows direct regulation of power consumption. Gear Change is only available in cooling mode.
| Model | Indoor Unit | MA3-24HRFN8-QRD0GW | |
|---|---|---|---|
| Outdoor Unit | MA3-24HFN8-QRD0GW | ||
| Power Supply | V/O/Hz | 220-240 / 1 / 50 | |
| Capacity | Cooling | kW | 7.03 (2.11 - 8.21) |
| Heating | 7.50 (1.55 - 8.21) | ||
| Power Input | Cooling / Heating | kW | 0.42 - 3.20 / 0.30 - 3.10 |
| SEER | Cooling | W/W | 6.40 |
| SCOP | Heating | 4.00 | |
| Energy Efficiency Class | Cooling | A++ | |
| Heating (-7°C) | A+ | ||
| Running Current | Cooling/ Heating | A | 1.8 - 13.9 / 1.3 - 13.5 |
| Air Flow (indoor unit) | m3/h | 1090 / 770 / 610 | |
| Sound Pressure (indoor unit) | dB(A) | 46 / 37 / 34.5 / 21 | |
| Sound Power (indoor unit) | dB(A) | 62 | |
| Air Flow (outdoor unit) | m3/h | 3500 | |
| Sound Pressure (outdoor unit) | dB(A) | 60 | |
| Sound Power (outdoor unit) | dB(A) | 67 | |
| Dimensions Wx H x D Weight | Indoor Unit | mm | 1083 x 244 x 336 |
| kg | 13.6 | ||
| Outdoor Unit | mm | 955 x 673 x 342 | |
| kg | 43.9 | ||
| Refrigerant piping (liquid/gas) | mm | 9.52 / 15.9 | |
| Max. refrigerant pipe length | m | 50 | |
| Max. difference in level | 25 | ||
| Operation Temperature | Cooling | °C | -15 ~ 50 |
| Heating | -15 ~ 24 | ||
| Refrigerant / Charged (kg) | R32 / 1.45 | ||
| Series | Prime 2 |
| Type | Inverter |
| Cooling Efficiency | A++ |
| Heating Efficiency | A+ |
| Cooling Capacity | 2.11 - 8.21 kW |
| Heating Capacity | 1.55 - 8.21 kW |
| Btu | 24000 Btu |
| Warranty | 3 years |
| Indoor Unit | MA3-24HRFN8-QRD0GW |
| Outdoor Unit | MA3-24HFN8-QRD0GW |
