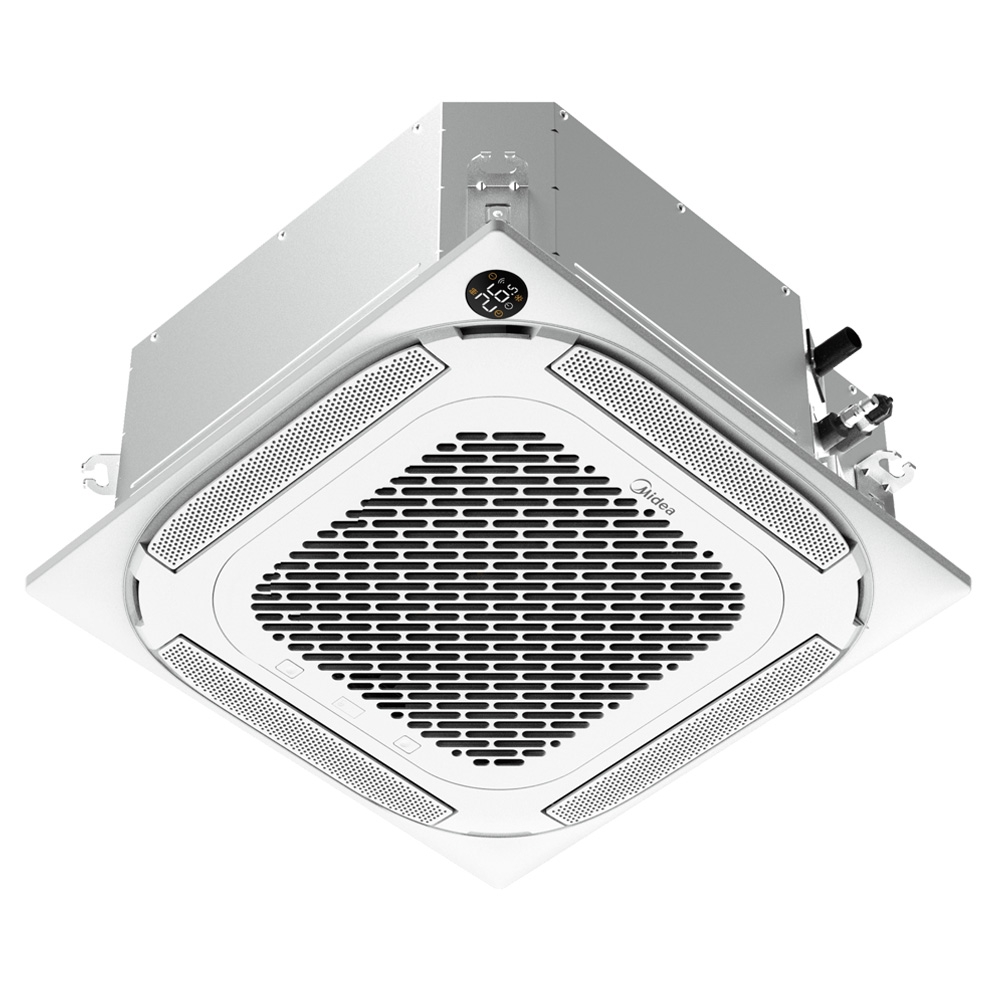

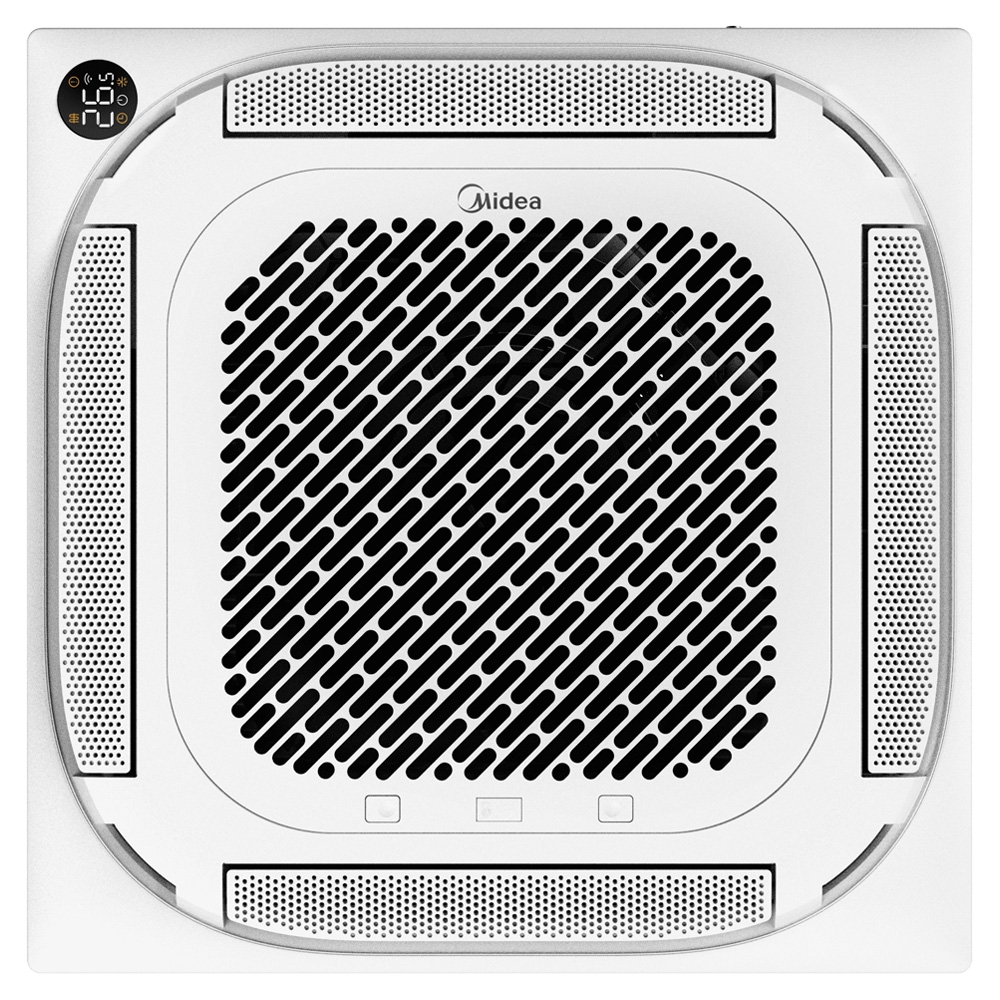

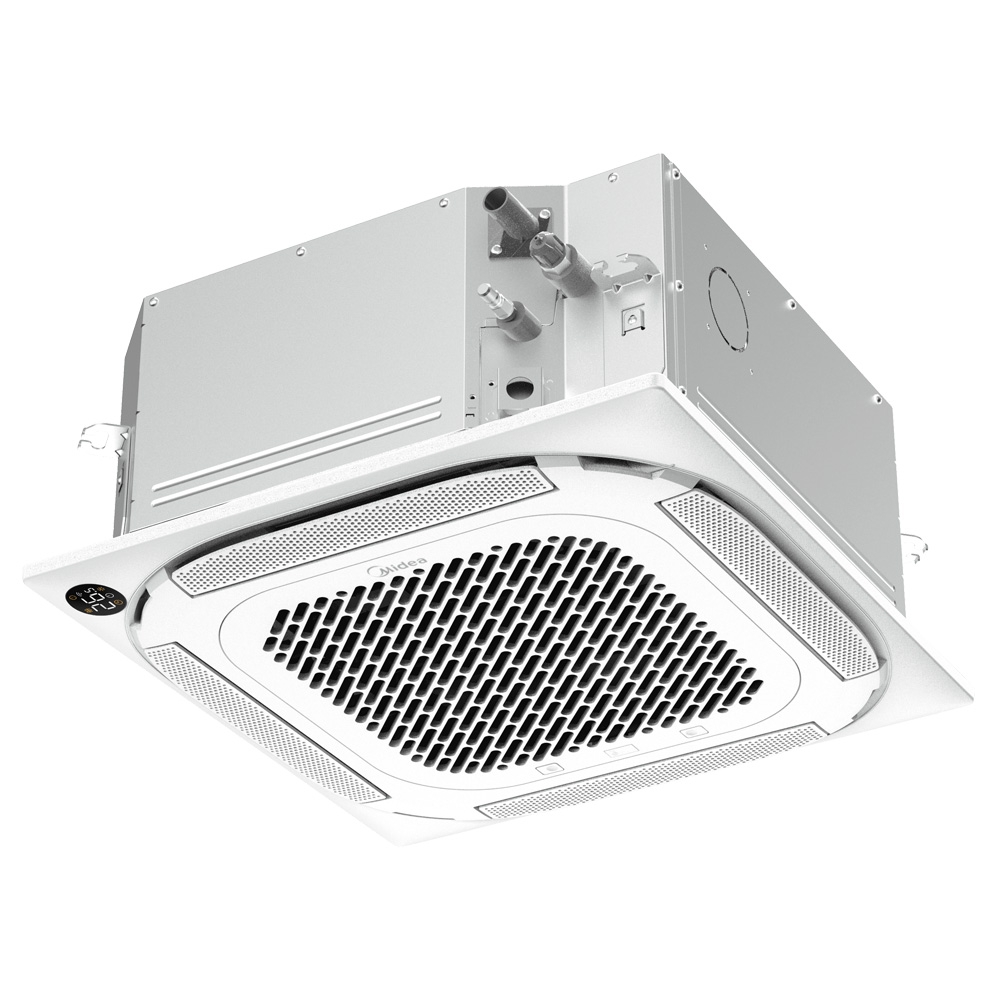

Midea MCA4U-18HRFNX-QRD1W(GA) cassette type inverter air conditioner
- Type: Cassette;
- Technology: Inverter air conditioner;
- Energy Class: А++/A+;
- Cooling SEER: 6.50;
- Heating SCOP: 4.10;
- Capacity: 18 000 Btu;
- Warranty: 36 months.
Functions and extras:
Individual Vane Control
The individual vane control system enables the unit to supply multi-directional airflow and customize everyone's comfort with a multitude of cooling configurations.
360° Round Flow
Unique seamless airflow louver design allows cool air todi use and sink in 360°, offering uniform cooling experience throughout the space.
Real Health Without Concerns
Outdoor air can be led into the room via a connection pipe, which keeps the indoor air fresh and healthy.

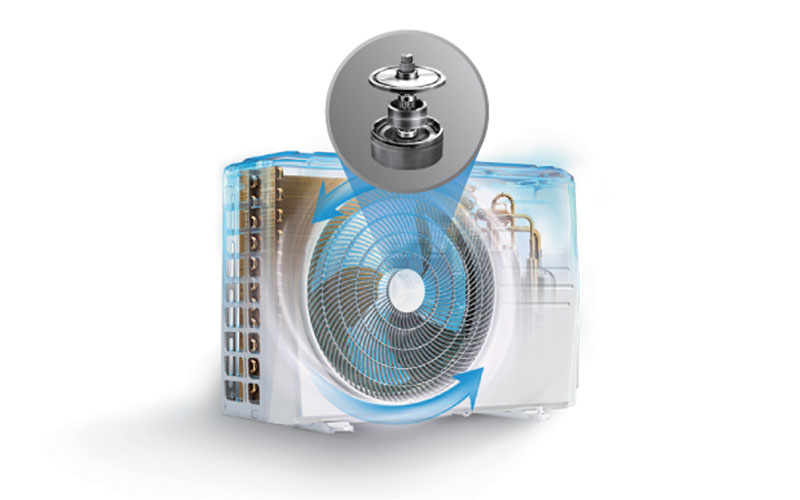

Intelligent Dusting Switch
After turning off the AC, the fan blade of the outdoor unit will automatically rotate in reverse to get rid of the sand and dust for keeping the AC clean.
LED Display
Larger LED display design, easier to check temperature at any time.
Technical specification for Midea MCA4U-18HRFNX-QRD1W(GA) inverter air conditioner
| Model | Indoor Unit | MCA4U-18HRFNX-QRD1W(GA) | |
|---|---|---|---|
| Outdoor Unit | MOX330U-18HFN8-QRD0W(GA) | ||
| Power Supply | V/O/Hz | 220-240 / 1 / 50 | |
| Capacity | Cooling | kW | 5.28 (2.90 ~ 5.59) |
| Heating | 5.57 (2.37 ~ 6.10) | ||
| Power Input | Cooling | kW | 1.55 (0.72 ~ 2.04) |
| Heating | 1.56 (0.70 ~ 1.95) | ||
| SEER | Cooling | W/W | 6.50 |
| SCOP | Heating | 4.10 | |
| EER | Cooling | W/W | 3.40 |
| COP | Heating | 3.57 | |
| Energy Efficiency Class | Cooling | A++ | |
| Heating | A+ | ||
| Running Current | Cooling/ Heating | A | 6.90 (3.20 ~ 9.00) / 6.80 (3.10 ~ 8.60) |
| Air Flow (indoor unit) | m3/h | 660 / 540 / 300 | |
| Sound Pressure (indoor unit) | dB(A) | 44 / 41 / 31.5 / 25 | |
| Sound Power (indoor unit) | dB(A) | 59 | |
| Air Flow (outdoor unit) | m3/h | 2100 | |
| Sound Pressure (outdoor unit) | dB(A) | 58 | |
| Sound Power (outdoor unit) | dB(A) | 65 | |
| Dimensions W x H x D Weight | Indoor Unit | mm | 570 x 245 x 570 |
| kg | 16.2 | ||
| Indoor Unit (Panel) | mm | 620 x 50 x 620 | |
| kg | 2.7 | ||

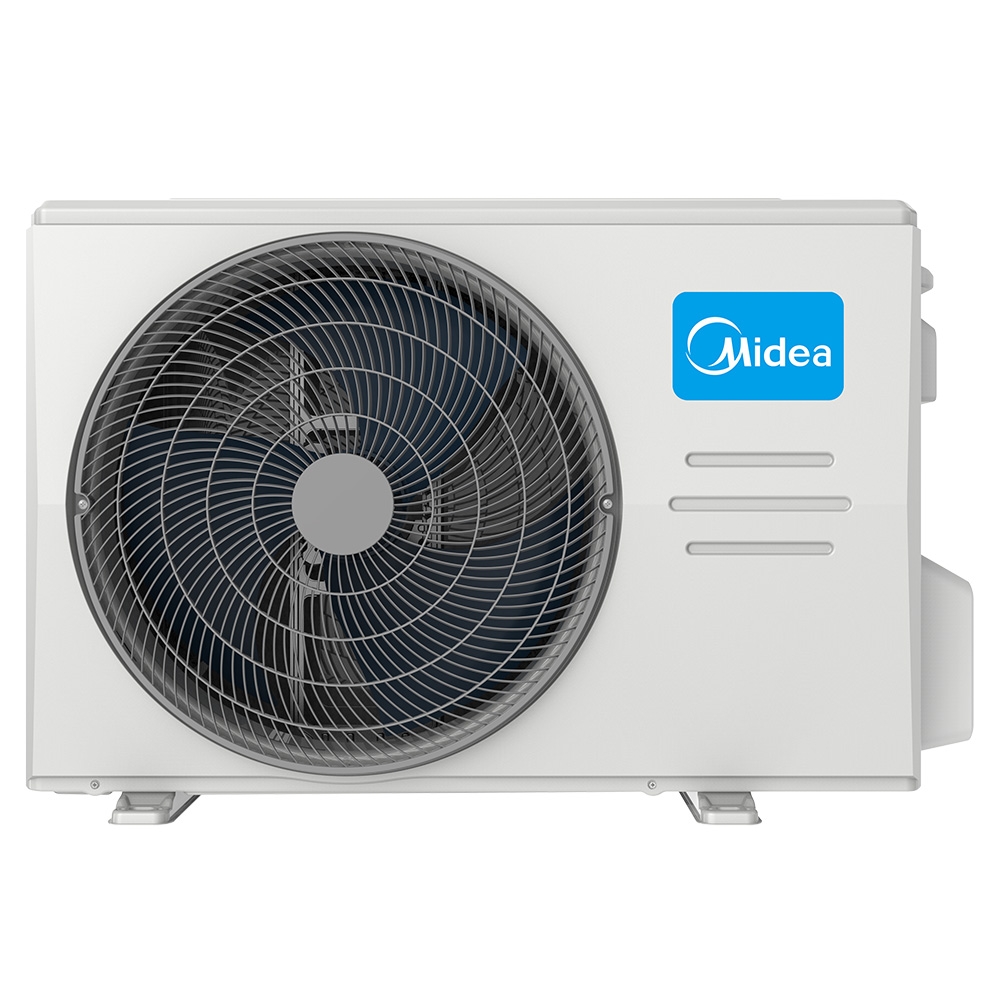

| Outdoor Unit | mm | 805 x 554 x 330 | |
| kg | 32.5 | ||
| Refrigerant piping (liquid/gas) | mm | φ 6.35 / φ 12.70 | |
| Max. refrigerant pipe length | m | 30 | |
| Max. difference in level | 20 | ||
| Operation Temperature | Cooling | °C | -15 ~ 50 |
| Heating | -20 ~ 24 | ||
| Refrigerant / Charged (kg) | R32 / 1.15 | ||
| Type | Inverter |
| Cooling Efficiency | A++ |
| Heating Efficiency | A+ |
| Cooling Capacity | 5.28 kW |
| Heating Capacity | 5.57 kW |
| Btu | 18000 Btu |
| Warranty | 3 years |
| Indoor Unit | MCA4U-18HRFNX-QRD1W(GA) |
| Outdoor Unit | MOX330U-18HFN8-QRD0W(GA) |
